Aluminum gas meter

Aluminum gas meter

Features:

- Upper case and lower case made by high quality die cast aluminum-alloy.

- Surface spray-paint protects from corrosion.

- Use high-quality bakelite rotary valve.

- Diaphragm made by advance gluing and vulcanization process.

- Aluminum case can be recycled, environmental-friendly.

- Broad metrological performance: G1.6A, G2.5A, G4A.

- High accuracy, long service life with reliability.

- Lower noise.

- AMR optional.

- MTC optional.

  • Product overview
  • Technical parameters
  • Size chart

Aluminum gas meter

The diaphragm gas meter is to use the differential pressure principle between inlet and outlet to impulse the diaphragms in the diaphragm boxes to do the to-and-fro movement. When the gas flow rate enters into the meter, it first is full of the space inside of the meter housings, from the rotary valve mouths due to the differential pressure, the gas will alternately enter into the different diaphragm boxes and realize the diaphragm boxes alternately charge and discharge. The movement of the rotary valve is transferred to the driving gear via the transmission mechanism and accumulates, the gas volume through the meter to index counter by the ratio calibration gears to realize the metrology of the gas meter.

With designing of independent measuring unit structure and high quality die cast aluminum-alloy case, the product has accuracy and reliability measurement under 150 Kpa operation pressure. Designing and producing meticulously, test strictly for GA serials gas meter which suitable for NG, LPG, Town gas, marsh gas measuring.

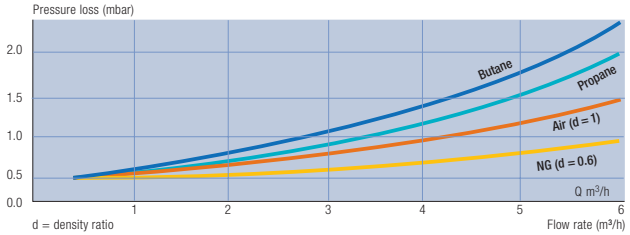

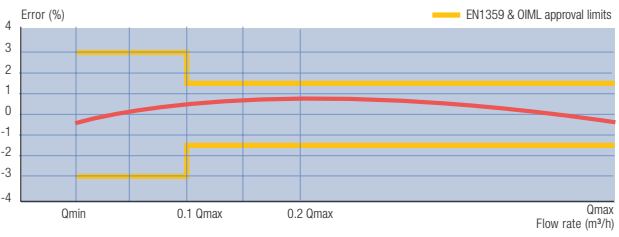

                                Typical regulation curve                                                                          Pressure absorption

Technical characteristics:

Item

Unit

G1.6A

G2.5A

G4A

Nominal flow-rate

m3/h

1.6

2.5

4

Max flow-rate(Qmax)

m3/h

2.5

4

6

Min flow-rate(Qmin)

m3/h

0.016

0.025

0.040

Shell



Aluminum

Centre distance

mm

130(110)

Total pressure absorption

Pa

<200

Max working pressure

kPa / bar

150 / 1.5

Cyclic volume

dm3

1.2

Error

Qmin≤Q<0.1Qmax

%

±3

0.1Qmax≤Q≤Qmax

%

±1.5

Min recording readings

dm3

0.2

Max recording readings

m3

99999.999

Operation ambient temperature

-25~+55

Storage temperature

-30~+60

Connection threads


M30×2; 3/4"BSP; G1 1/4"( By customized)

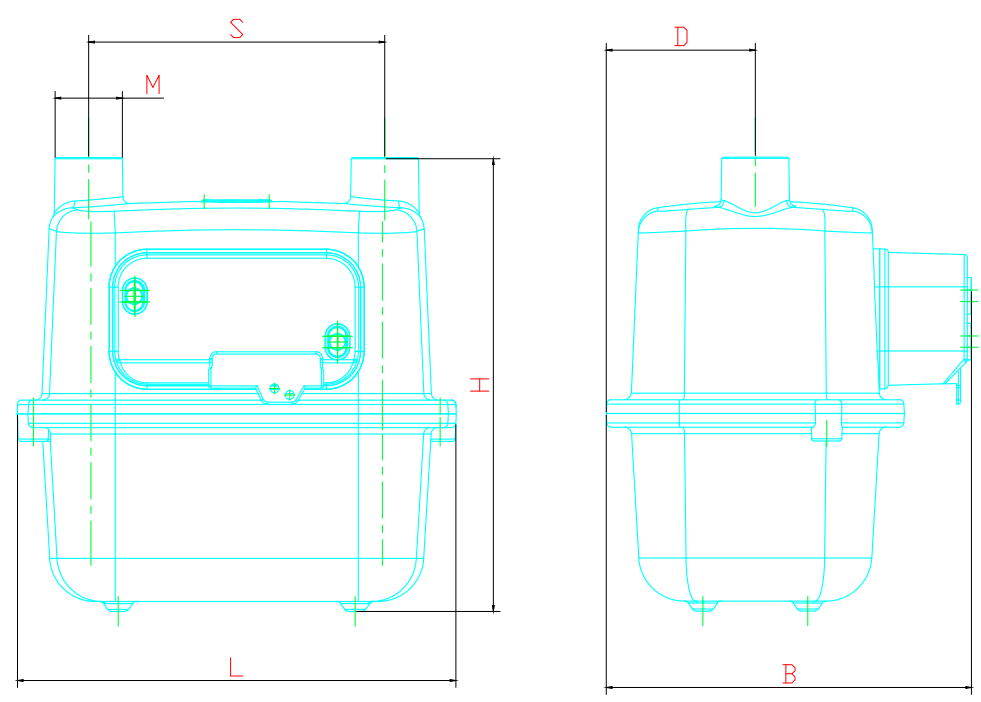

Dimensions:

Model

H

W

D

E

A

Weight

G1.6A、G2.5A、G4A

224mm

215mm

74mm

175mm

130(110)mm

1.8Kgs
