Steel gas meter

Steel gas meter

Features:

- Outside case made by high-quality steel.

- Surface spray-paint protects from corrosion.

- Case closing use stainless steel for leakage protection.

- Diaphragm made by advance gluing and vulcanization process.

- Use high-quality bakelite rotary valve.

- Upper case and lower case fixed with glue for leakage protection.

- Broad metrological performance: G1.6S,G2.5S,G4S.

- High accuracy and long term and reliability.

- Low noise.

- AMR optional.

- MTC optional.

  • Product overview
  • Technical parameters

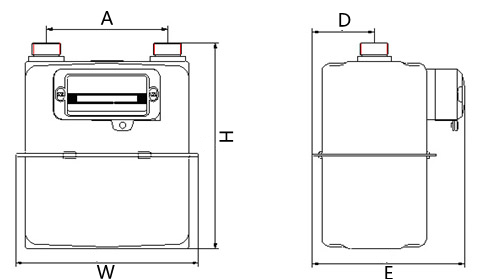

  • Size chart

The diaphragm gas meter is to use the differential pressure principle between inlet and outlet to impulse the diaphragms in the diaphragm boxes to do the to-and-fro movement. When the gas flow rate enters into the meter, it first be full of the space inside of the meter housings, from the rotary valve mouths due to the differential pressure, the gas will alternately enter into the different diaphragm boxes and realize the diaphragm boxes alternately charge and discharge. The movement of the rotary valve is transferred to the driving gear via the transmission mechanism and accumulate. The gas volume through the meter to index counter by the ratio calibration gears to realize the metrology of the gas meter.

Independent measuring unit structure designing inside, and outside cases are pressed by the high-quality spray-paint steel, it’s has high accuracy and high reliability. Designing and producing meticulously, test strictly for GS serials gas meter which suitable for NG, LPG, Town gas, marsh gas measuring.


                              Typical regulation curve                                                                          Pressure absorption

Technical characteristics:

Item

Unit

G1.6S

G2.5S

G4S

Nominal flow-rate

m3/h

1.6

2.5

4

Max flow-rate(Qmax)

m3/h

2.5

4

6

Min flow-rate(Qmin)

m3/h

0.016

0.025

0.040

Shell



Steel

Centre distance

mm

110(130)

Total pressure absorption

Pa

<200

Max working pressure

kPa / bar

50 / 0.5

Cyclic volume

dm3

1.2

Error

Qmin≤Q<0.1Qmax

%

±3

0.1Qmax≤Q≤Qmax

%

±1.5

Min recording readings

dm3

0.2

Max recording readings

m3

99999.999

Operation ambient temperature

-25~+55

Storage temperature

-30~+60

Connection threads


G1 1/4";3/4"NPT( By customized)


Dimensions

                   Model

H

W

D

E

A

Weight

G1.6S、G2.5S、G4S

224mm

195mm

67mm

164mm

110(130)mm

1.90Kgs
